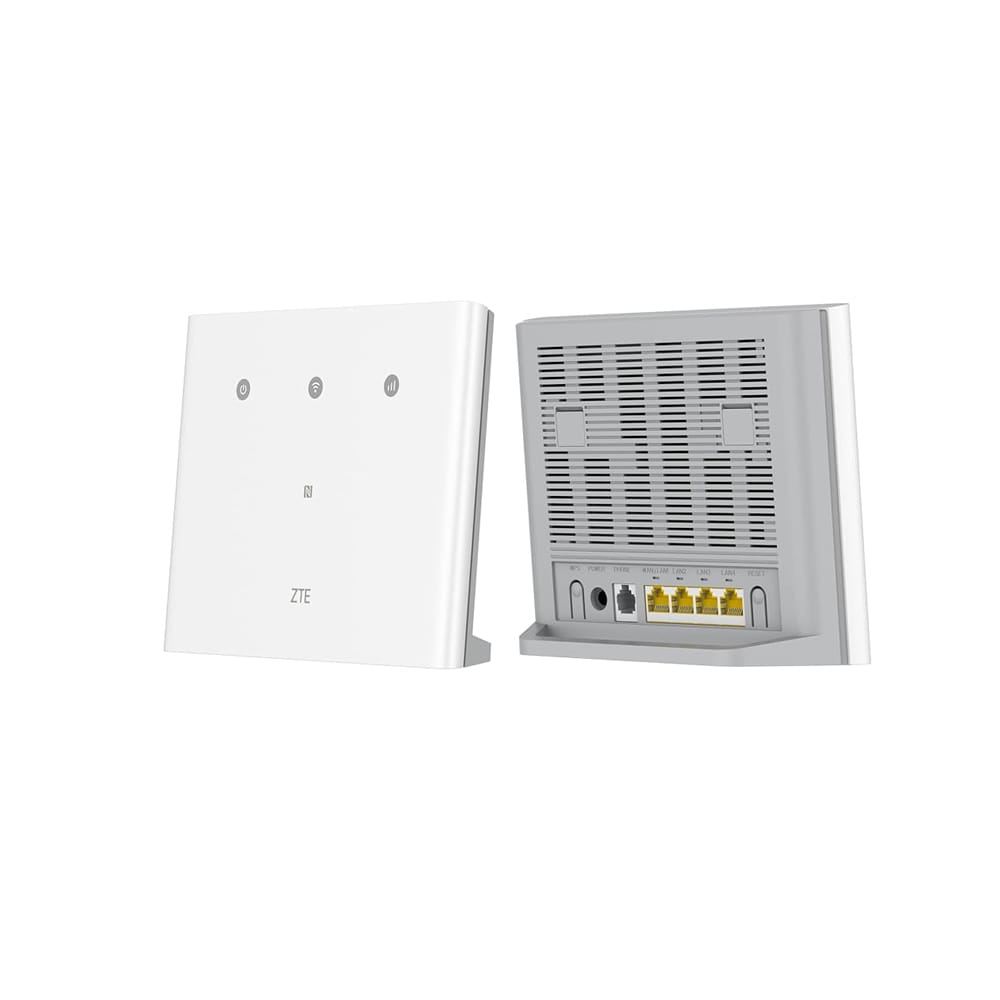

MF296D

The MF296D CAT 12 CPE
FDD/TDD/UMTS/GSM – LTE CAT12, DL 2CA supported
LTE-FDD band:1,3,7,8,20,28,32:LTE?TDD band:38,40,41:UMTS band:1,8:GSM/GPRS/EDGE: 2,3,5,8. LTE FDD: DL/UL 600/150Mbps (CAT12/13) LTE TDD: DL/UL 440+/22+Mbps (CAT12/13), DC-HSPA+: DL/UL 42/5.76Mbps,Wi-Fi : 802.11 a/b/g/n/ac, 2.4 GHz 2*2 & 5GHz 2 x 2, DBDC . Total 1.2Gbps up to 64 users supported,Band Steering .145.5*182*27mm. Data service,Voice Service,WebUI,ZTE Link,FOTA/TR069 (CUSTOMIZED)Firewall,IPV6/V4,Main stream OS supported. 4 x RJ45 (GE, 1 X WAN/LAN , 3 X LAN), 1 X RJ11 (FXS,CSFB/VoLTE/VoIP (Customized) 1 x sim socket(4FF) 2 X SMA (External Antenna) 1 x DC470(DC12V) 1 x Micro USB. Button and switch: WPS/Reset. LED : Power , Wi-Fi, Network
